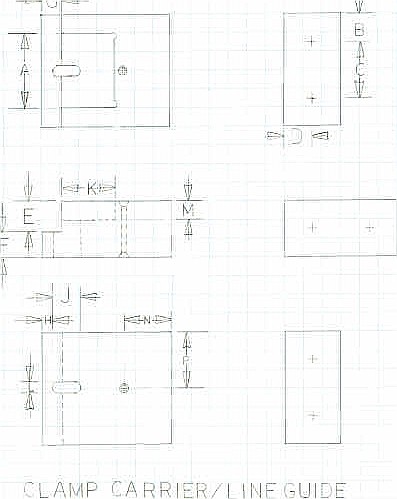

Clamp Carrier Line Guide Diagram

A = 1"         H = 5/32"
B = 3/8"     J = 23/64"
C = 3/4"     K = 11/16"
D = 3/8"     L = 1/8"
E = 3/8"     M = 1/4"
F = 3/8"     N = 5/8"
G = 5/16"   P = 3/4"

"I" AND "O" ARE LEFT OUT TO AVOID CONFUSION WITH ONE AND 0.

+ = 6-32 THREADED HOLES FOR THE MACHINE SCREWS THAT HOLD THIS BLOCK, TO
THE GUIDE BLOCK, THAT RIDES THE MAIN RUNNER (OR YOU CAN CEMENT THE BLOCKS
TOGETHER, AND OMIT THE HOLES AND THE SCREWS)

CONCENTRIC CIRCLES ( AT DIMENSION "N" AND "P") = 1/16" (OR LESS) HOLE DRILLED THROUGH THE BLOCK AS SHOWN, TO SUIT THE SIZE LINE YOU ARE USING.

THIS HOLE IS COUNTERSUNK ON BOTH SIDES TO MAKE IT EASIER TO THREAD THE LINE
THROUGH THE BLOCK.

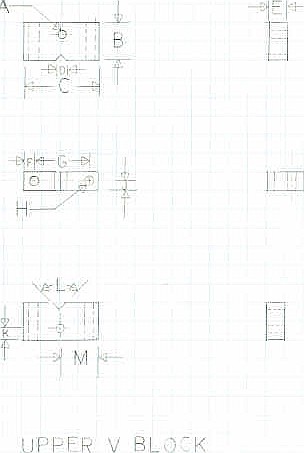

Upper V Block Diagram

Legend for Upper "V" Block Drawing

A = 4-40 THREAD THROUGH BLOCK
B = 1/2"
C = 1"
D = 1/8"
E = 6 MM (.236")
F = 1/8"
G = 3/4"
H = # 33 DRILL (.113" DIAMETER) THROUGH BLOCK
J = 3 MM (. 118")
K = 5/32"
L = 90 DEGREES
M = 1/2"

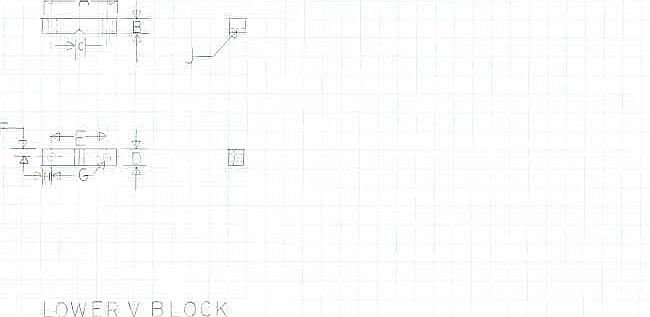

Lower V Block Diagram

LEGEND FOR LOWER "V' BLOCK DRAWING

A = 1"
B = 3/16"
C = 1/8"
D = 6 MM (.236")
E = 3/4"
F = 3 MM (.118")
G = DRILL AND TAP 4-40 THROUGH BLOCK
H = 1/8"
J = 90 DEGREES INCLUDED ANGLE OF GROOVE ACROSS BLOCK.

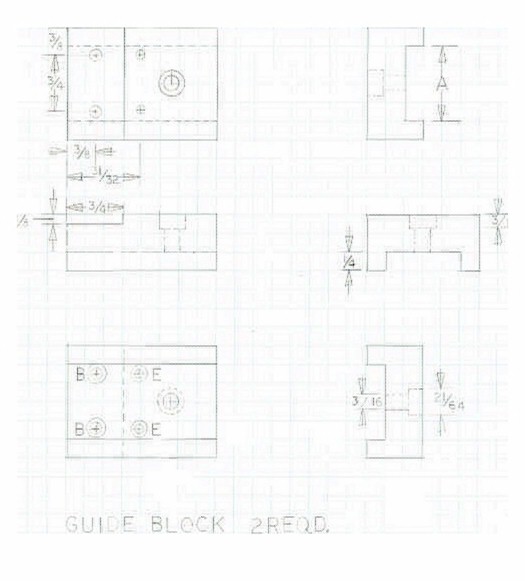

Guide Block
